Reolink 4K 8MP IK10 Vandal-Proof PoE Security Kit with Smart Detection

Description

Secure your property with the 4K 8MP IK10 Vandal-Proof PoE Security Kit, built for durability, clarity, and intelligent monitoring. Featuring ultra-HD 4K resolution, impact-resistant IK10-rated cameras, and smart detection technology, this system delivers reliable 24/7 surveillance for businesses, warehouses, and high-risk environments.

Monitor every detail in crisp 8MP 4K resolution while benefiting from rugged IK10 vandal-proof protection designed to resist tampering and physical impact. Smart detection technology identifies people and vehicles to reduce false alerts and improve security response times.

Key Features

• 8MP 4K Ultra HD Resolution — Crystal-clear footage for accurate monitoring and playback.
• IK10 Vandal-Proof Rating — Impact-resistant metal housing for high-risk environments.
• Smart Person & Vehicle Detection — Reduces false alerts and improves response times.
• 16-Channel NVR — Supports up to 24 IP cameras (max 16 wired PoE).
• 4TB Pre-Installed Storage — Expandable up to 16TB (2 × 8TB SATA drives).
• 24/7 Continuous Recording — Works even without internet.
• 16 PoE Ports — IEEE 802.3af/at, up to 25W per port.
• No Monthly Fees — Full local recording with complete ownership.

Specifications

System Overview

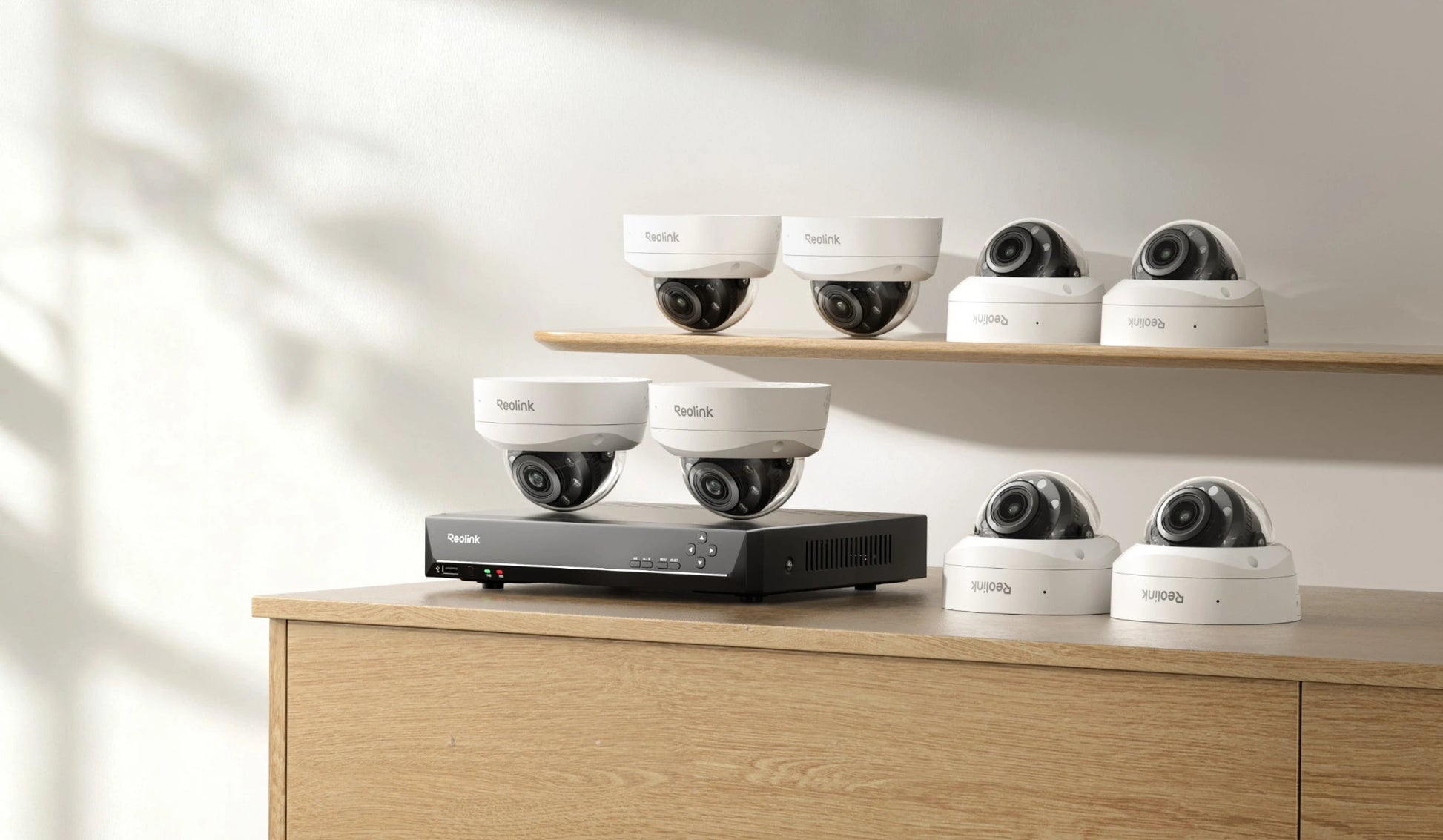

• Model: RLN16-410 NVR + (8) RLC-843A Cameras
• Channels: 16-channel NVR (supports up to 24 IP cameras)

Video & Imaging

• Resolution: 8MP (3840×2160) Ultra HD
• Compression: H.265 / H.264
• Live View / Playback: Up to 7680×2160 (8K decoding)
• Frame Rate: Up to 25–30 FPS
• Synchronous Playback: Up to 4 channels

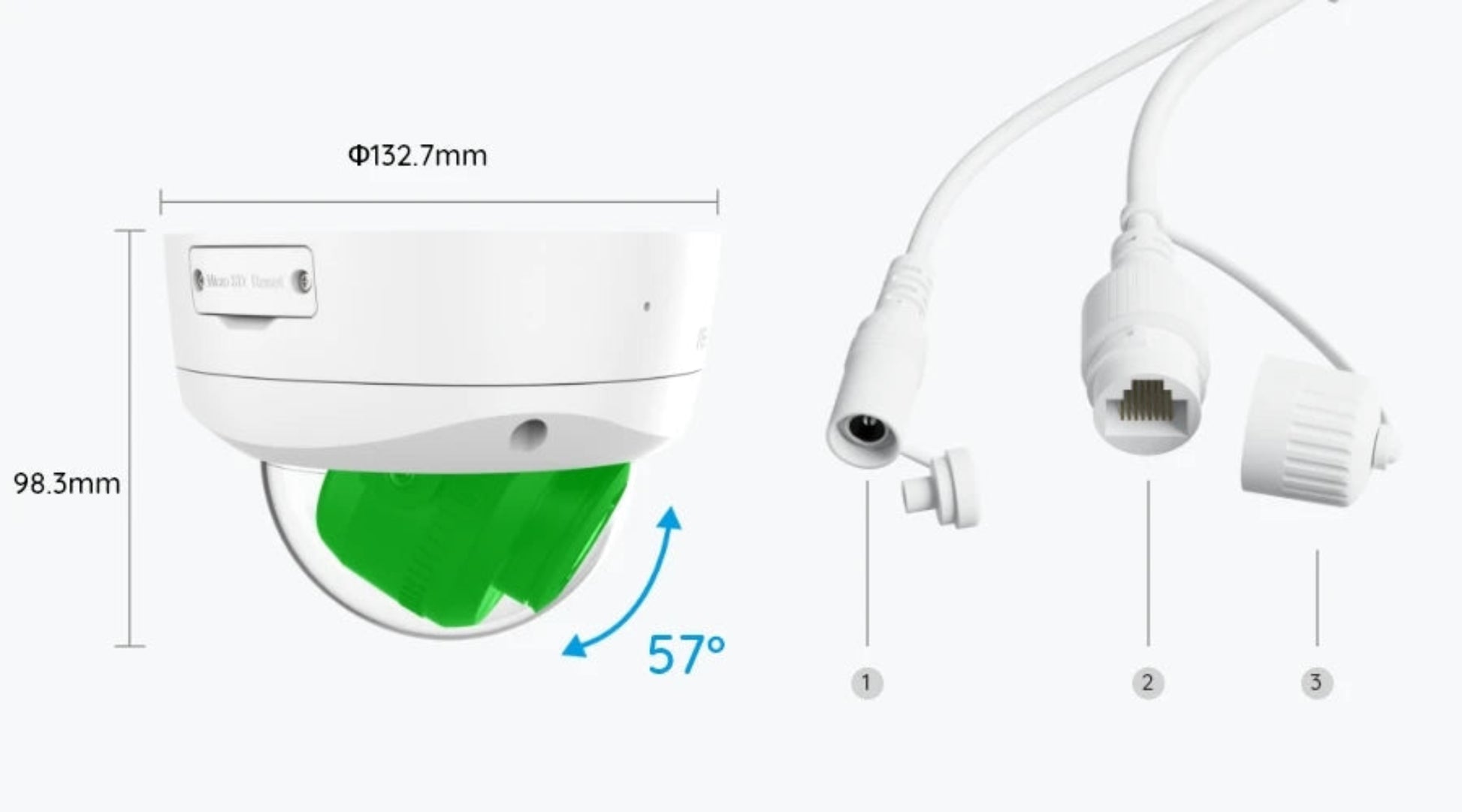

Camera Build & Protection

• IK10 vandal-proof rating (impact-resistant metal housing)
• Weather-resistant for indoor/outdoor use
• Dome-style cameras ideal for tamper-prone areas

Smart Detection

• Person & vehicle detection
• Motion-triggered alerts with reduced false alarms
• Real-time notifications via mobile and desktop apps

Storage & Recording

• Pre-installed: 4TB HDD
• Max capacity: 16TB (2 × 8TB SATA)
• Modes: Continuous, motion-triggered, scheduled
• Local recording without internet

Display & Output

• HDMI: Up to 3840×2160 (4K)
• VGA: Up to 1920×1080
• Audio Output: 1-channel RCA

Network & Connectivity

• 16 × RJ-45 PoE ports (10/100 Mbps)
• 1 × RJ-45 LAN/WAN port (10/100 Mbps)
• PoE Standard: IEEE 802.3af/at, up to 25W per port
• Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Remote Access

• OS: Windows, Mac, iOS, Android
• Browsers: Chrome, Firefox, Edge, Safari
• Max 20 users, 12 simultaneous streams

Power & Environment

• Power: DC 48V–54V
• Consumption: <10W (excluding HDD & PoE load)
• Operating Temp: -10°C to 45°C
• Humidity: 10%–90%

Physical

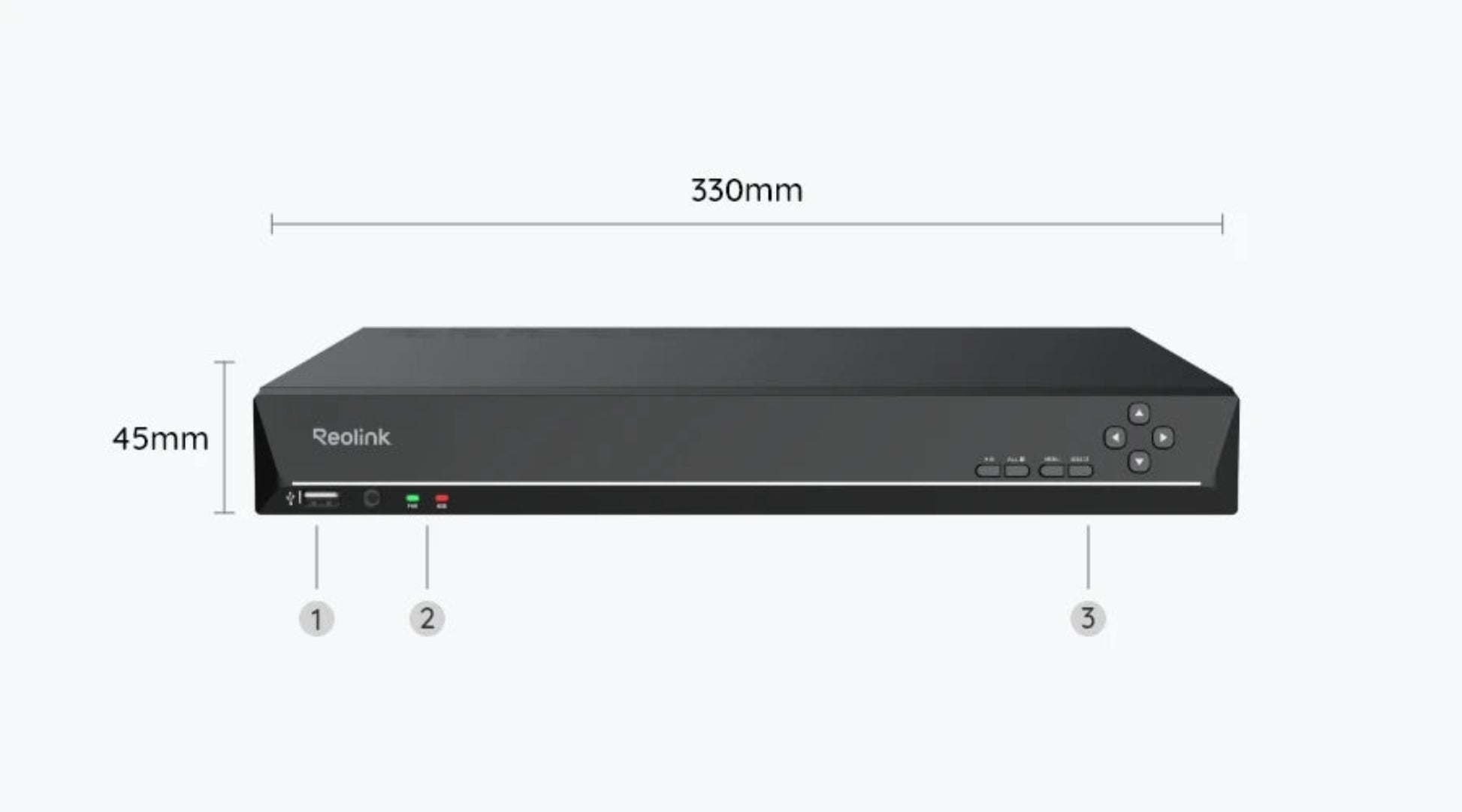

• NVR Dimensions: 330×45×285mm
• NVR Weight: 2.4kg

Warranty

• 2-Year Limited Manufacturer Warranty

Why Customers Love It

Customers choose this system for its rugged IK10 durability, sharp 4K video quality, and reliable PoE installation. It’s ideal for high-traffic or vulnerable areas where durability and consistent monitoring are essential. Smart detection reduces false alarms, and local recording ensures footage is always captured — even without internet.

Shipping & Delivery

Free shipping on all orders over $99. Secure packaging and fast shipping ensure your system arrives safely and ready for installation, with tracking provided on every order.

Support

Reolink stands behind every product with dedicated manufacturer support. As an authorized Reolink reseller, purchases made through Prime Secure Systems are fully covered — you’ll have direct access to Reolink’s support team for setup assistance, troubleshooting, firmware updates, and warranty service. Your investment is protected by the manufacturer, no matter where you bought it.
